Saves every single waveform.
That weird thing that just happened? Go back and have a look.
Saves every single waveform.
That weird thing that just happened?
Go back and have a look.
Saves every single waveform.
That weird thing that just happened? Go back and have a look.

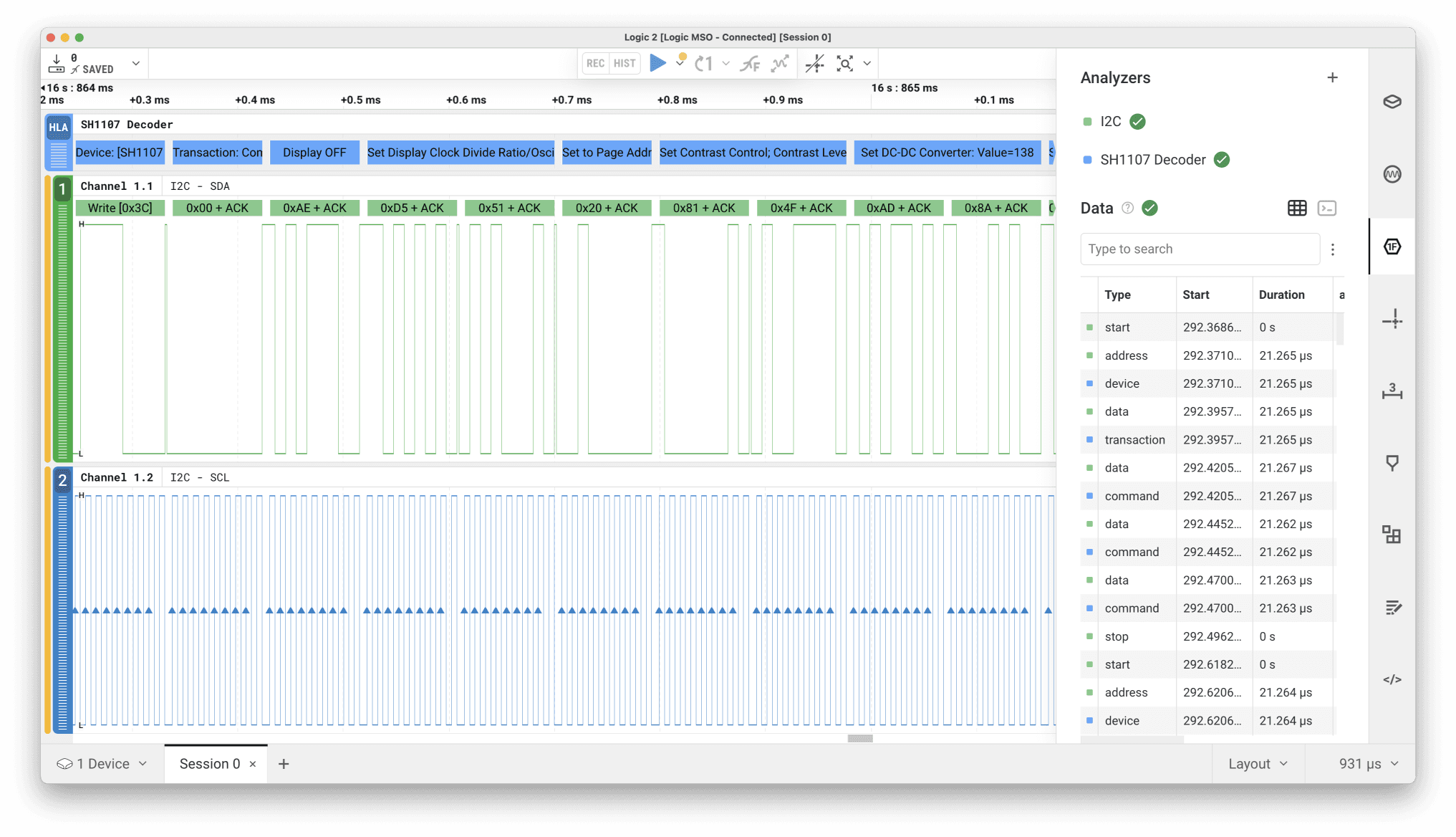

Finally, a scope with a first-class logic analyzer.
The only scope with an uninterrupted, continuous stream of decoded protocols and digital logic.
decode 25 protocols out of the box
(+tons of community analyzers)
record billions of transitions
search millions of
decoded messages
‘high level’ &
'low level' decoders
Finally, a scope with a first-class logic analyzer.
The only scope with an uninterrupted, continuous stream of decoded protocols and digital logic.
decode 30 protocols out of the box
(+tons of community analyzers)
record billions of transitions
search millions of
decoded messages
‘high level’ &
'low level' decoders
Finally, a scope with a first-class logic analyzer.
The only scope with an uninterrupted, continuous stream of decoded protocols and digital logic.
decode 25 protocols out of the box
(+tons of community analyzers)
record billions of transitions
search millions of
decoded messages
‘high level’ &
'low level' decoders
Ludicrously deep single-shot.
Capture up to 1 Billion samples on every channel simultaneously.
600 ns
s
600
600 ms
Ludicrously deep single-shot.
Capture up to 1 Billion samples
on all channels simultaneously.
600 ns
s
600
600 ms
Ludicrously deep single-shot.
Capture up to 1 Billion samples on every channel simultaneously.
600 ns
s
600
600 ms
Your benchtop scope: what you may miss 😭
(expand)
Taking "screen shots" (ahem…)
Typing in measurement results.
Using knobs to enter csv file names.
Your benchtop scope: what you may miss 😭
(expand)
Taking "screen shots" (ahem…)
Typing in measurement results.
Using knobs to enter csv file names.
Your benchtop scope: what you may miss 😭
(expand)
Taking "screen shots" (ahem…)
Typing in measurement results.
Using knobs to enter csv file names.
This scope runs Python.
Analyzers & measurements today. Full automation coming Q2/3 2025.
This scope runs Python.
Analyzers & measurements today. Full automation coming Q2/3 2025.
This scope runs Python.
Analyzers & measurements today. Full automation coming Q2/3 2025.
All the Specs.
General Specs
Standard
9-bit • 100 Ms
Pro
+$500
12-bit • 1000 Ms
Standard
9-bit • 100 Ms
Pro
+$750
12-bit • 1000 Ms
Standard
9-bit • 100 Ms
Pro
+$1000
12-bit • 1000 Ms
Oscilloscope Channels
2
4
4
Oscilloscope Bandwidth
100
MHz
100
MHz
200
MHz
Oscilloscope Sampling Rate
1.0
GS/s
1.0
GS/s
1.6
GS/s
Oscilloscope Resolution
9
bit
12
bit
9
bit
12
bit
9
bit
12
bit
Oscilloscope Sample Depth
100M
Samples
1B
Samples
100M
Samples
1B
Samples
100M
Samples
1B
Samples
Digital Channels
8
Expandable to 20
8
Expandable to 20
8
Expandable to 20
Digital Sampling Rate
1.0
GS/s
1.0
GS/s
1.2
GS/s
Digital Sampling Depth
Billions of transitions
Billions of transitions
Billions of transitions
Digital Transition Rate
300M
Transitions/s
300M
Transitions/s
300M
Transitions/s
Vertical (Amplitude)
All Devices
Input Impedance
1 MΩ || 16 pF nominal
Full Scale Range
10 mVpp to 60 Vpp
DC Gain Accuracy
±2 % of full scale range
DC Offset Accuracy
±1% of full scale range ± 2mV
DC Accuracy
DC gain accuracy ± DC offset accuracy
Gain Stage
0 dB to 38 dB in 2 dB steps
DC Offset Stage
±2.0V in 75uV steps
Attenuation Stages
1x (0 dB), 10x (10 dB), 100x (20 dB)
Input Coupling
AC/DC Selectable
AC Cutoff Frequency
7 Hz nominal
Bandwidth Limiting
20 MHz selectable (nominal)
Channel-to-Channel Isolation
≥ 50 dB
Maximum Input Voltage
±30 V Derate at 20dB per decade after 20 MHz
Box Contents
All Devices
Analog Probes
2 Probes (Fixed 10:1) with Accessories
4 Probes (Fixed 10:1) with Accessories

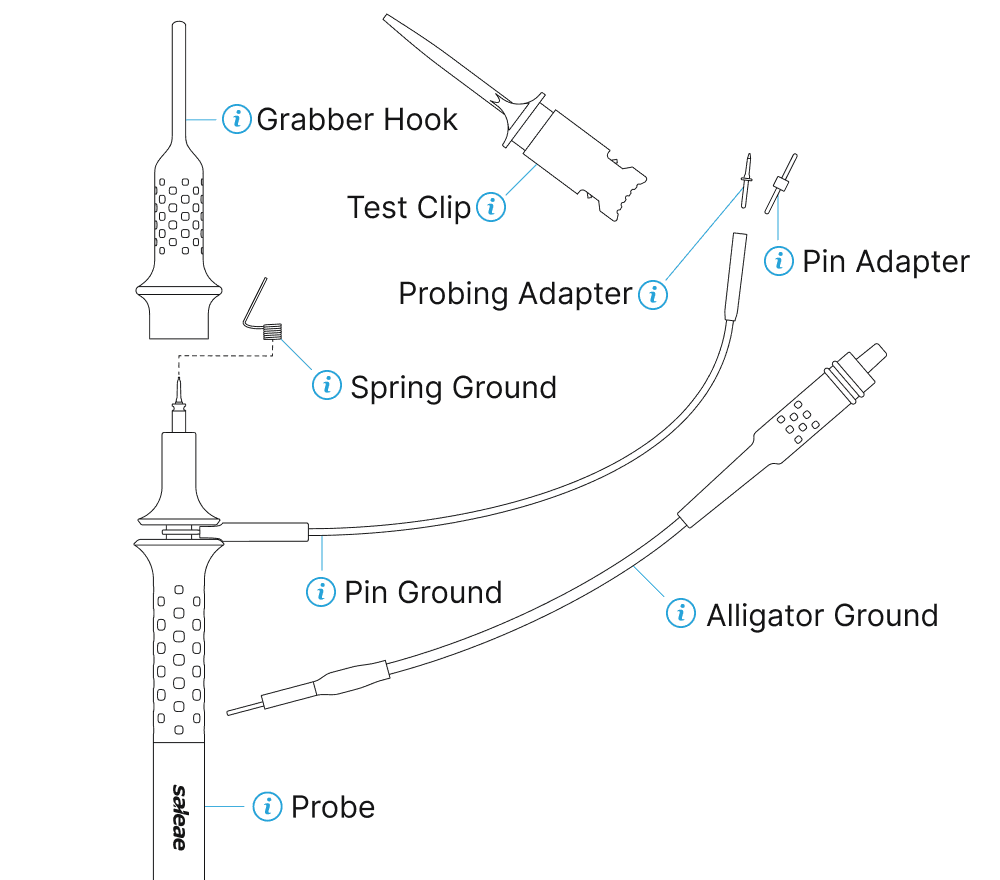

Accessories Per Analog Probe
1 x Grabber Hook, 1 x Alligator Clip Ground, 1 x Spring Ground, 1 x Ground Pin Receptacle, 1 x Test Clip

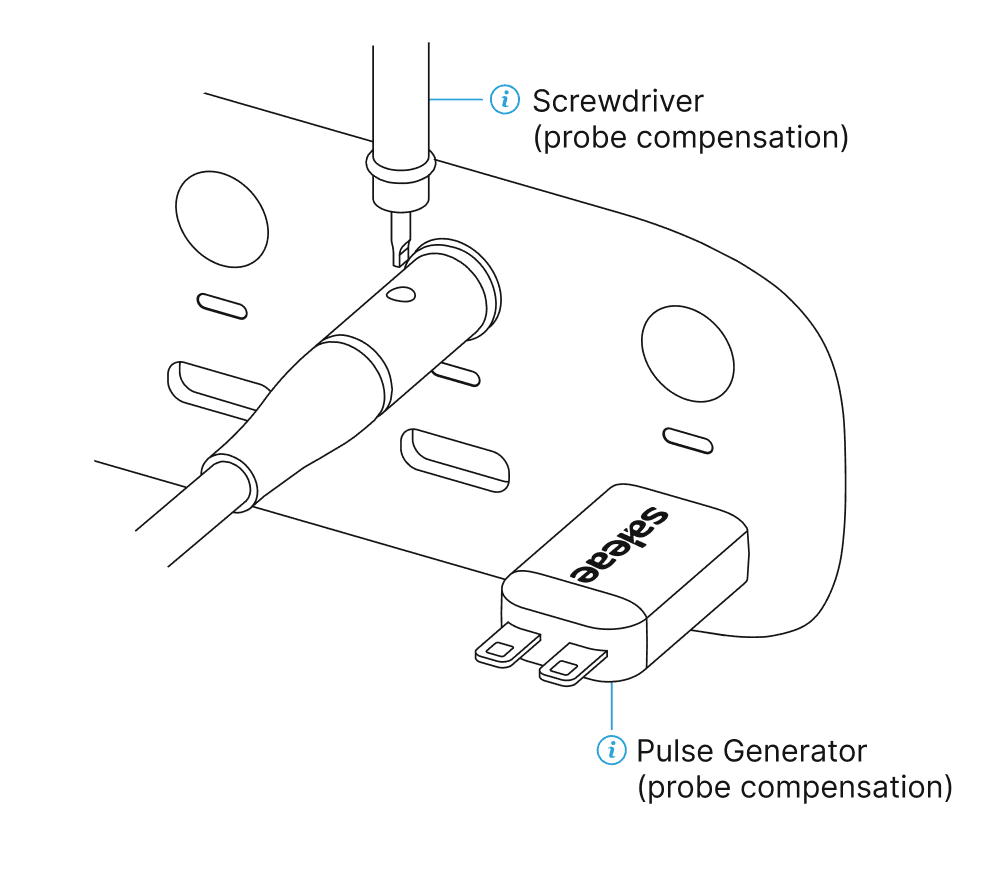

Probe Compensation Tools
1 x Pulse Generator, 1 x Ceramic Screw Driver
3rd Party Probe Connectivity
2 x BNC to SMB Adapters
4 x BNC to SMB Adapters
Digital Probes
2 with Accessories (add up to 3 more at any time)
Accessories Per Digital Probe
5-wire Harness, 5 × Test Clips, 5 × Pin-Pin Adapters, 2 × Pin-Probe Adapters
Data Connectivity
1.8m USB-A to USB-C Cable, USB-A to USB-C Adapter
Power Connectivity
3.0m USB-C to USB-C Cable, 30W Regional USB-C Power Adapter
Carrying Case
1 Case (with room for all included accessories and additional digital probes)
All the Specs.
General Specs
Standard
9-bit • 100 Ms
Pro
+$500
12-bit • 1000 Ms
Standard
9-bit • 100 Ms
Pro
+$750
12-bit • 1000 Ms
Standard
9-bit • 100 Ms
Pro
+$1000
12-bit • 1000 Ms
Oscilloscope Channels
2
4
4
Oscilloscope Bandwidth
100
MHz
100
MHz
200
MHz
Oscilloscope Sampling Rate
1.0
GS/s
1.0
GS/s
1.6
GS/s
Oscilloscope Resolution
9
bit
12
bit
9
bit
12
bit
9
bit
12
bit
Oscilloscope Sample Depth
100M
Samples
1B
Samples
100M
Samples
1B
Samples
100M
Samples
1B
Samples
Digital Channels
8
Expandable to 20
8
Expandable to 20
8
Expandable to 20
Digital Sampling Rate
1.0
GS/s
1.0
GS/s
1.2
GS/s
Digital Sampling Depth
Billions of transitions
Billions of transitions
Billions of transitions
Digital Transition Rate
300M
Transitions/s
300M
Transitions/s
300M
Transitions/s
Vertical (Amplitude)
All Devices
Input Impedance
1 MΩ || 16 pF nominal
Full Scale Range
10 mVpp to 60 Vpp
DC Gain Accuracy
±2 % of full scale range
DC Offset Accuracy
±1% of full scale range ± 2mV
DC Accuracy
DC gain accuracy ± DC offset accuracy
Gain Stage
0 dB to 38 dB in 2 dB steps
DC Offset Stage
±2.0V in 75uV steps
Attenuation Stages
1x (0 dB), 10x (10 dB), 100x (20 dB)
Input Coupling
AC/DC Selectable
AC Cutoff Frequency
7 Hz nominal
Bandwidth Limiting
20 MHz selectable (nominal)
Channel-to-Channel Isolation
≥ 50 dB
Maximum Input Voltage
±30 V Derate at 20dB per decade after 20 MHz
Box Contents
All Devices
Analog Probes
2 Probes (Fixed 10:1) with Accessories
4 Probes (Fixed 10:1) with Accessories
Accessories Per Analog Probe
1 x Grabber Hook, 1 x Alligator Clip Ground, 1 x Spring Ground, 1 x Ground Pin Receptacle, 1 x Test Clip
Probe Compensation Tools
1 x Pulse Generator, 1 x Ceramic Screw Driver
3rd Party Probe Connectivity
2 x BNC to SMB Adapters
4 x BNC to SMB Adapters
Digital Probes
2 with Accessories (add up to 3 more at any time)
Accessories Per Digital Probe
5-wire Harness, 5 × Test Clips, 5 × Pin-Pin Adapters, 2 × Pin-Probe Adapters
Data Connectivity
1.8m USB-A to USB-C Cable, USB-A to USB-C Adapter
Power Connectivity
3.0m USB-C to USB-C Cable, 30W Regional USB-C Power Adapter
Carrying Case
1 Case (with room for all included accessories and additional digital probes)
All the Specs.
General Specs
Standard
9-bit • 100 Ms
Pro
+$500
12-bit • 1000 Ms
Standard
9-bit • 100 Ms
Pro
+$750
12-bit • 1000 Ms
Standard
9-bit • 100 Ms
Pro
+$1000
12-bit • 1000 Ms
Oscilloscope Channels
2
4
4
Oscilloscope Bandwidth
100
MHz
100
MHz
200
MHz
Oscilloscope Sampling Rate
1.0
GS/s
1.0
GS/s
1.6
GS/s
Oscilloscope Resolution
9
bit
12
bit
9
bit
12
bit
9
bit
12
bit
Oscilloscope Sample Depth
100M
Samples
1B
Samples
100M
Samples
1B
Samples
100M
Samples
1B
Samples
Digital Channels
8
Expandable to 20
8
Expandable to 20
8
Expandable to 20
Digital Sampling Rate
1.0
GS/s
1.0
GS/s
1.2
GS/s
Digital Sampling Depth
Billions of transitions
Billions of transitions
Billions of transitions
Digital Transition Rate
300M
Transitions/s
300M
Transitions/s
300M
Transitions/s
Vertical (Amplitude)
All Devices
Input Impedance
1 MΩ || 16 pF nominal
Full Scale Range
10 mVpp to 60 Vpp
DC Gain Accuracy
±2 % of full scale range
DC Offset Accuracy
±1% of full scale range ± 2mV
DC Accuracy
DC gain accuracy ± DC offset accuracy
Gain Stage
0 dB to 38 dB in 2 dB steps
DC Offset Stage
±2.0V in 75uV steps
Attenuation Stages
1x (0 dB), 10x (10 dB), 100x (20 dB)
Input Coupling
AC/DC Selectable
AC Cutoff Frequency
7 Hz nominal
Bandwidth Limiting
20 MHz selectable (nominal)
Channel-to-Channel Isolation
≥ 50 dB
Maximum Input Voltage
±30 V Derate at 20dB per decade after 20 MHz
Box Contents
All Devices
Analog Probes
2 Probes (Fixed 10:1) with Accessories
4 Probes (Fixed 10:1) with Accessories
Accessories Per Analog Probe
1 x Grabber Hook, 1 x Alligator Clip Ground, 1 x Spring Ground, 1 x Ground Pin Receptacle, 1 x Test Clip
Probe Compensation Tools
1 x Pulse Generator, 1 x Ceramic Screw Driver
3rd Party Probe Connectivity
2 x BNC to SMB Adapters
4 x BNC to SMB Adapters
Digital Probes
2 with Accessories (add up to 3 more at any time)
Accessories Per Digital Probe
5-wire Harness, 5 × Test Clips, 5 × Pin-Pin Adapters, 2 × Pin-Probe Adapters
Data Connectivity
1.8m USB-A to USB-C Cable, USB-A to USB-C Adapter
Power Connectivity
3.0m USB-C to USB-C Cable, 30W Regional USB-C Power Adapter
Carrying Case
1 Case (with room for all included accessories and additional digital probes)
What's in the box.
What's in the box.
What's in the box.

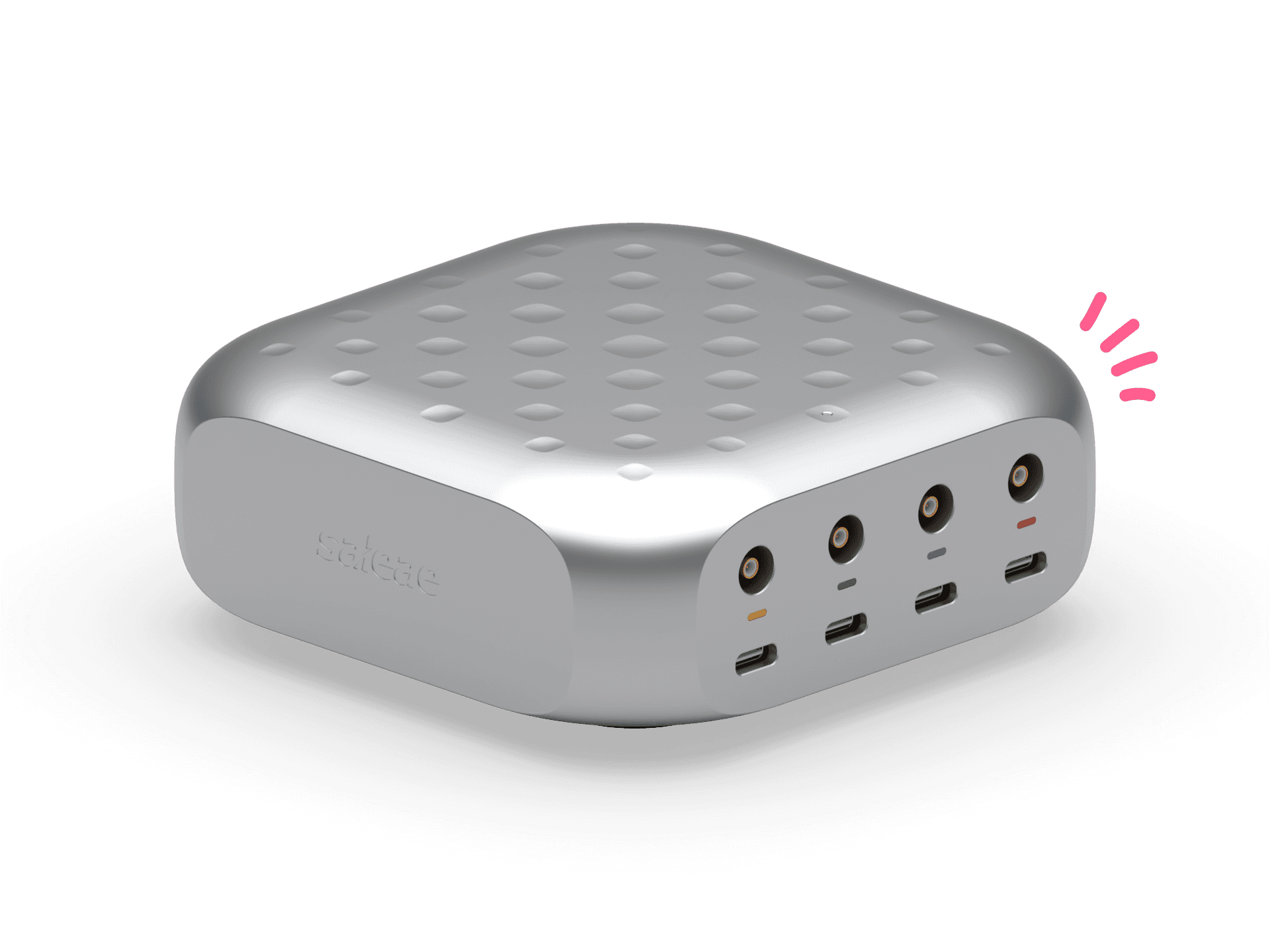

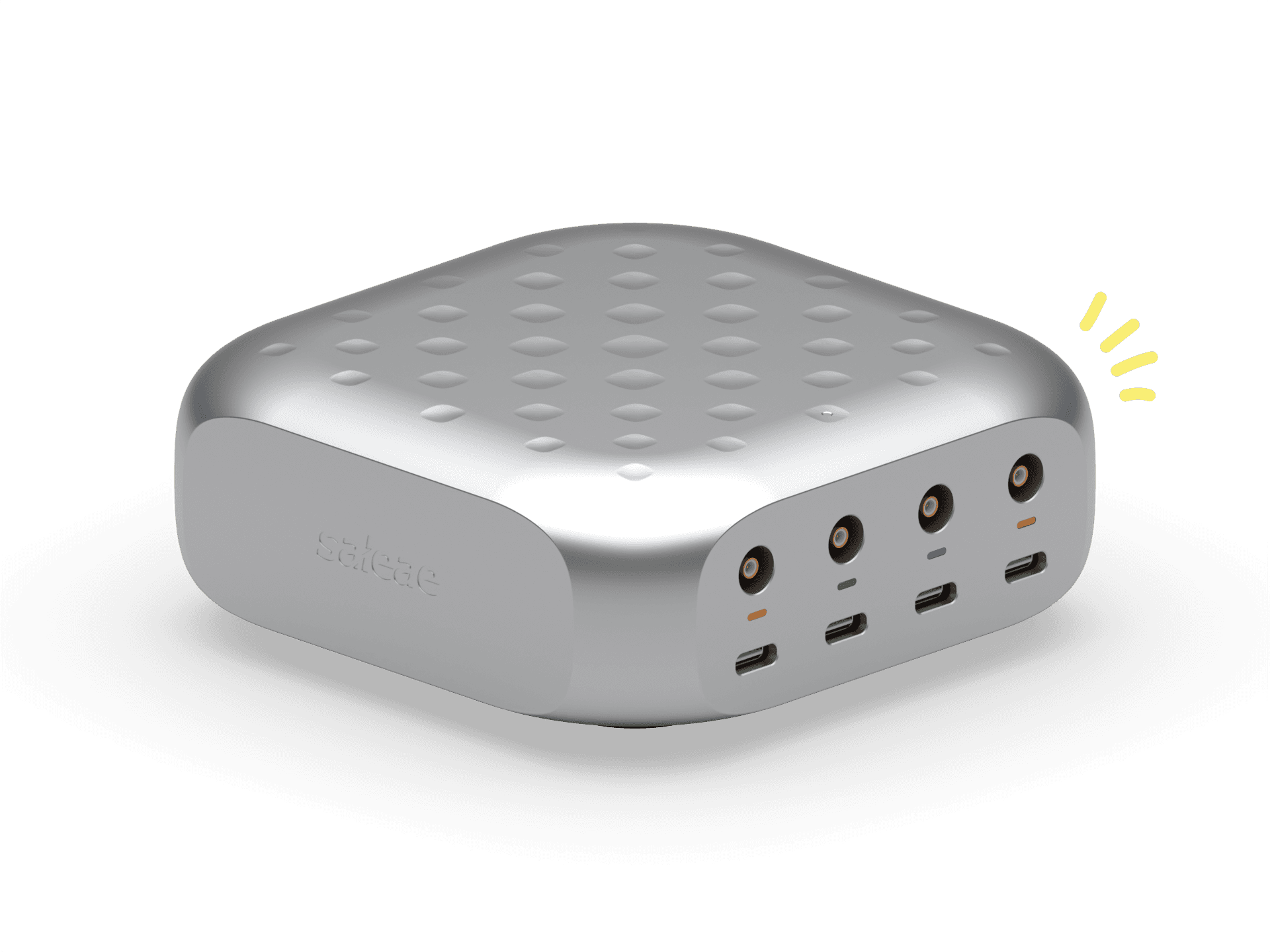

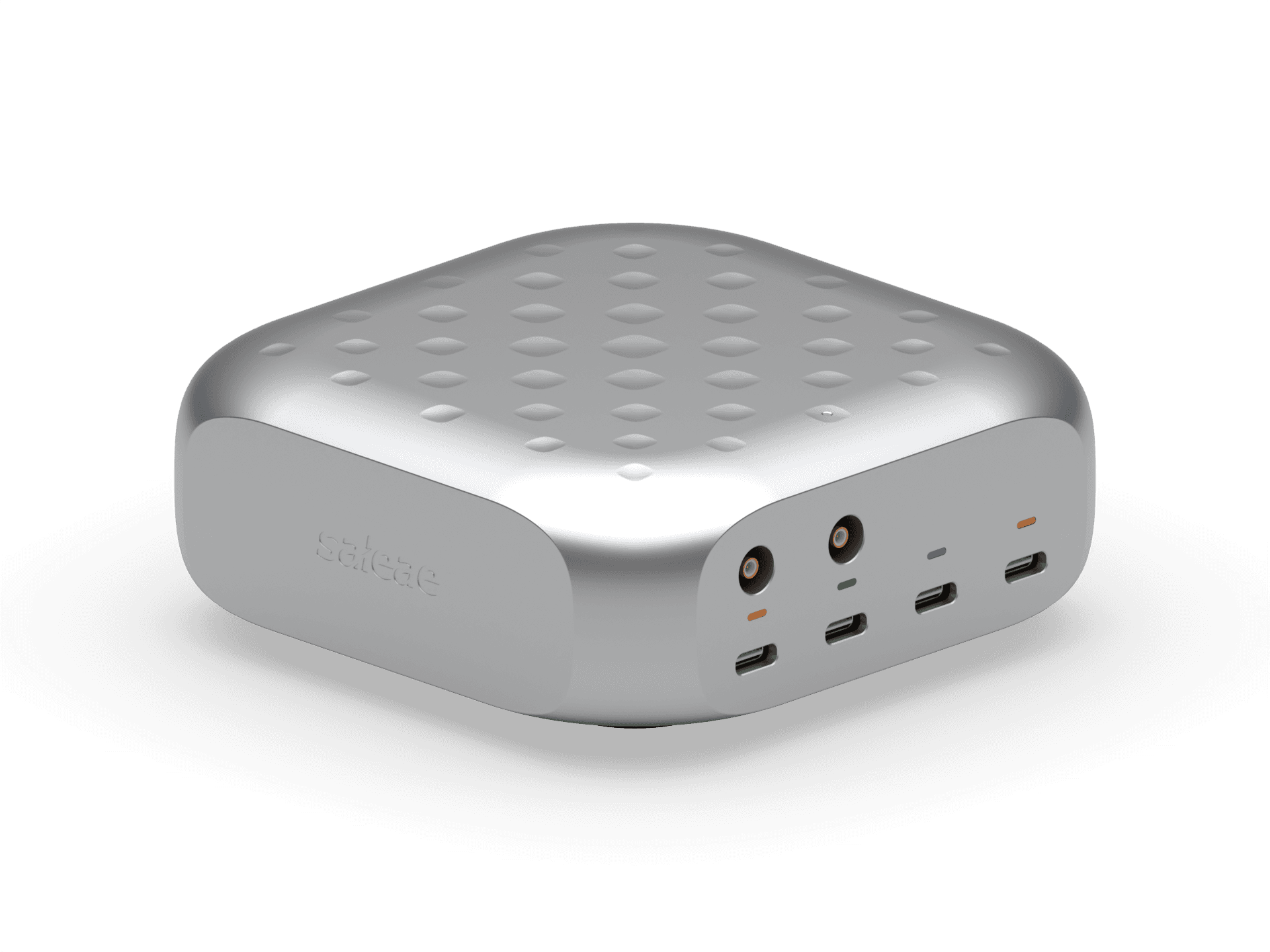

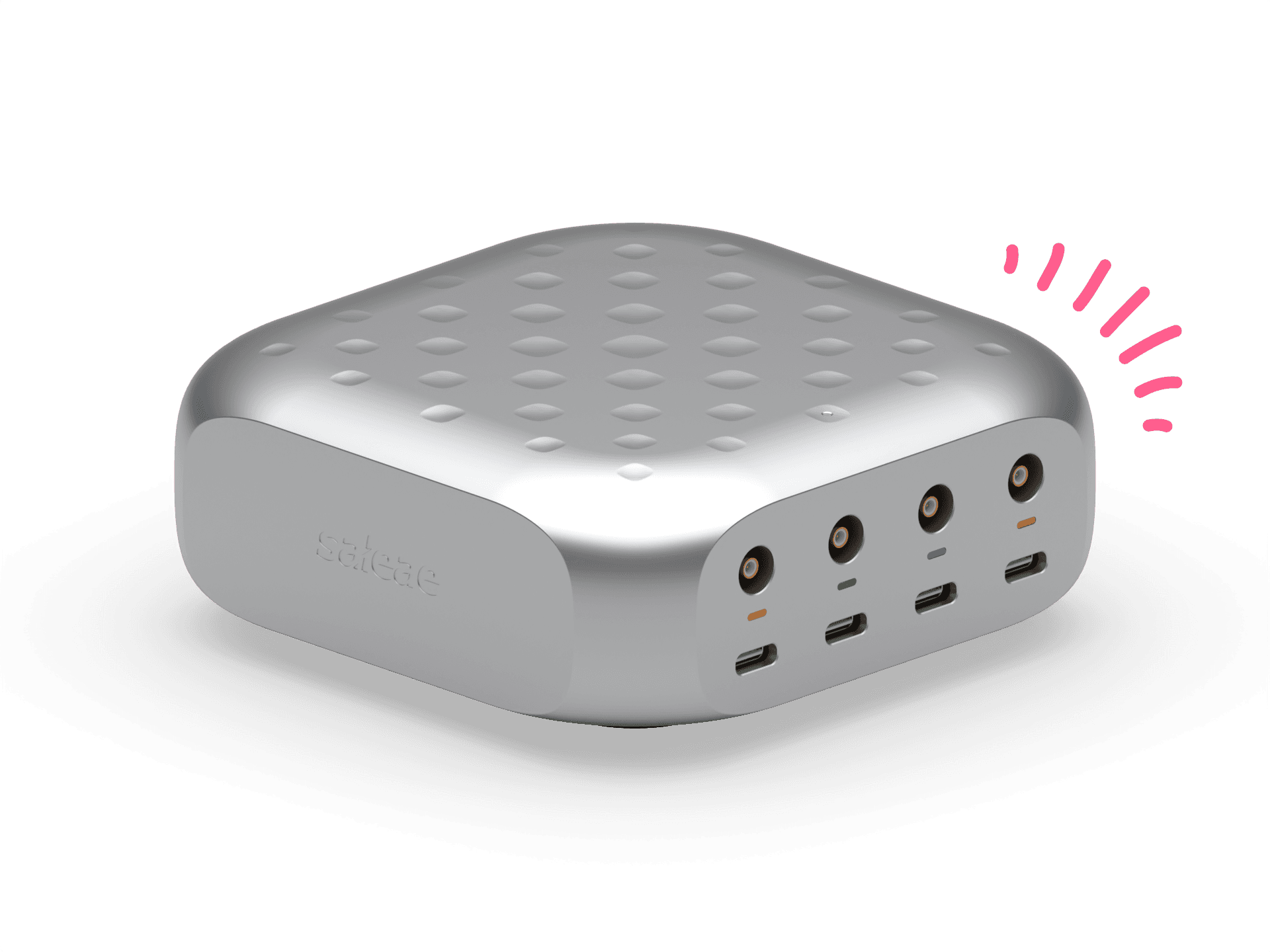

Logic MSO
Obviously, Logic MSO is included. In addition to being a fine oscilloscope, it is also more than capable of holding down loose papers on your desk.

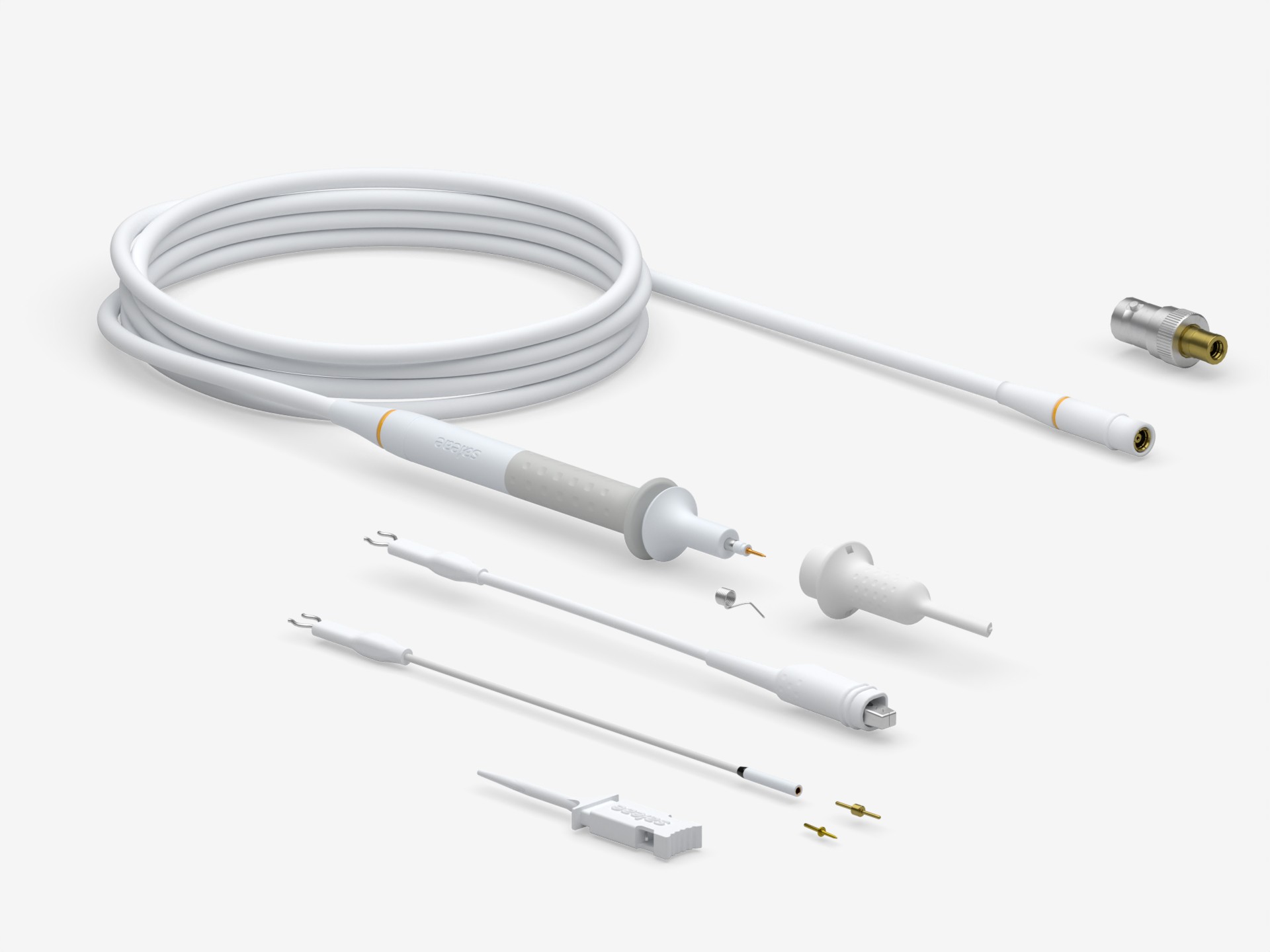

Scope Probes
These might just be the best-looking scope probes ever, so that's something! We did include a few nice quality-of-life grounding options, and a BNC adapter — so you can use your existing probes and cables.

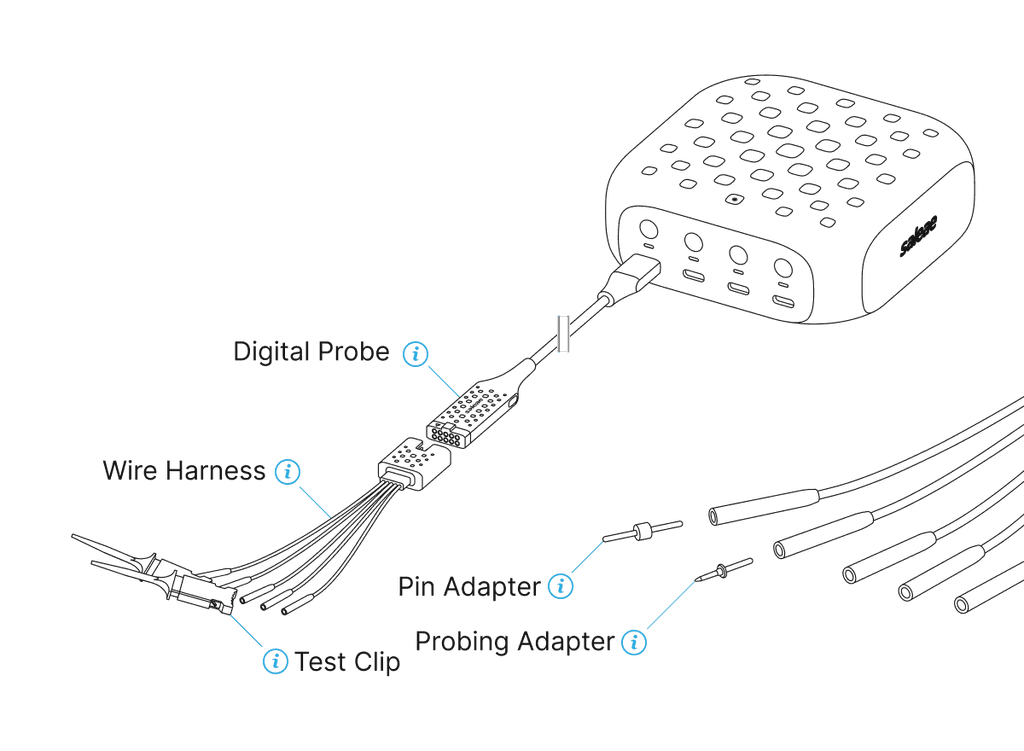

Digital Probes
Each Digital Probe provides 4 digital inputs, with variable threshold, sampled at 1 Gbps. (1.2 Gbps in the case of Logic MSO 200 MHz models).
Two Digital Probes are included by default (8 channels). Logic MSO supports up to 5 Digital Probes simultaneously (20 channels).
x2
USB 3.0 Cable
This is not the most exciting item, although considerable angst was expended on whether this should be type-A or type-C. We decided to support both.

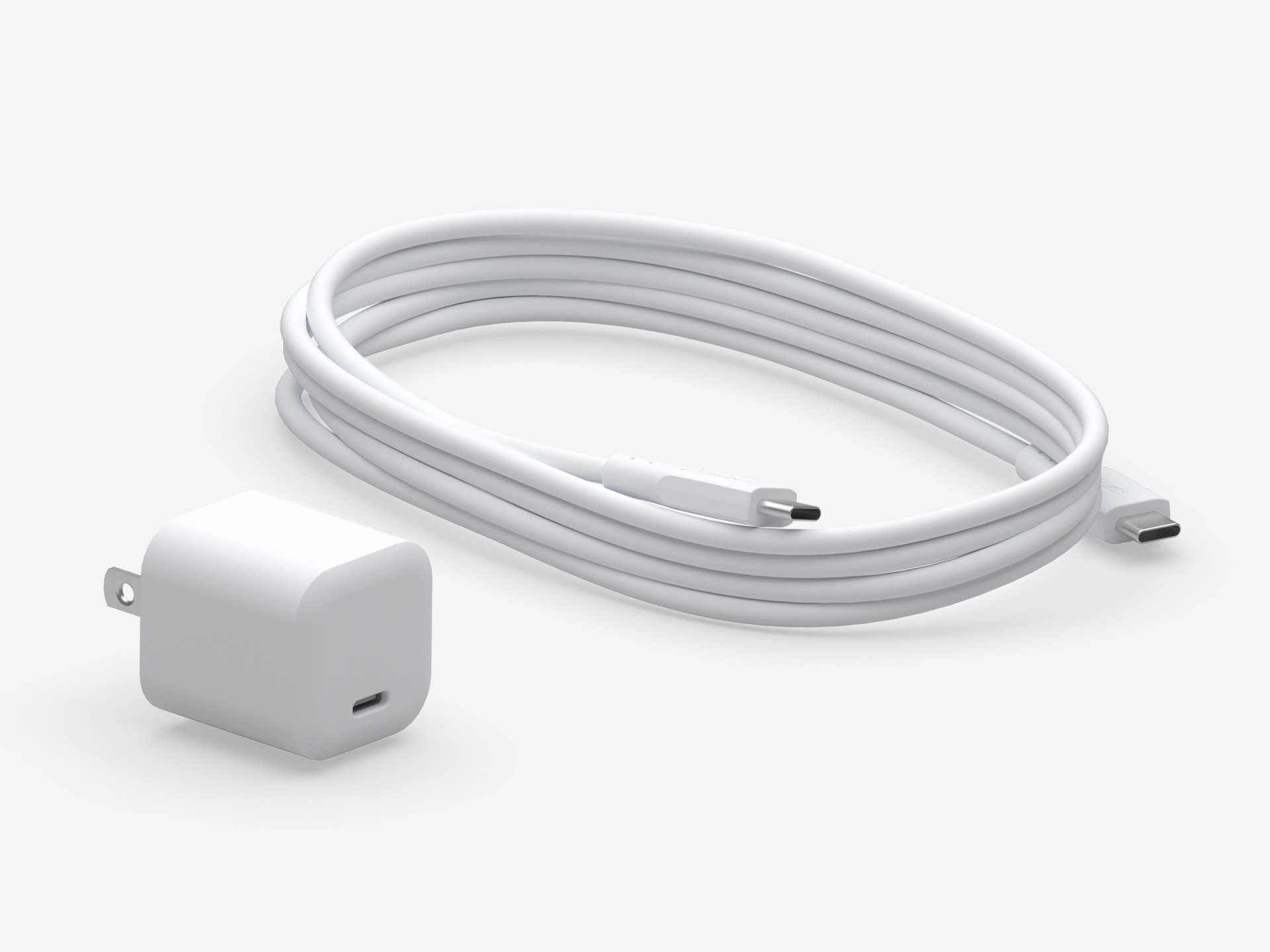

Type-C Power
We included a 3 meter-long cable, so you don't need to be right next to the outlet. A type-C power brick is provided, and you can use any such 30W+ supply.
Storage Case
A surprising amount of effort went into how to store Logic MSO and all its bits and bobs. Hopefully, now you won't have to worry about it.
How this works.
How this works.
How this works.
How this works.
Occasionally Asked Questions
I already have Logic. Should I get ✨Logic MSO✨?
Are the Type-C connectors USB compliant?
Should I get Logic, or Logic MSO?
Logic MSO vs Someone Else's Scope™
Scope XYZ seems to be cheaper for the same specs?
What software features does Logic MSO have / not have?
What model of Logic MSO should I get?
Can I purchase via Mouser (or Amazon, etc)?
How can I try out the software?
What’s the return policy and warranty?
Occasionally Asked Questions
I already have Logic. Should I get ✨Logic MSO✨?
Are the Type-C connectors USB compliant?
Should I get Logic, or Logic MSO?
Logic MSO vs Someone Else's Scope™
Scope XYZ seems to be cheaper for the same specs?
What software features does Logic MSO have / not have?
Occasionally Asked Questions
I already have Logic. Should I get ✨Logic MSO✨?
Are the Type-C connectors USB compliant?
Should I get Logic, or Logic MSO?
Logic MSO vs Someone Else's Scope™
Scope XYZ seems to be cheaper for the same specs?
What software features does Logic MSO have / not have?
What model of Logic MSO should I get?
Can I purchase via Mouser (or Amazon, etc)?
How can I try out the software?
What’s the return policy and warranty?
Working to deliver an inspiring future for electrical engineering bringup, debug, and test.
© 2025 Saleae, Inc.
Working to deliver an inspiring future for electrical engineering bringup, debug, and test.
© 2025 Saleae, Inc.
Working to deliver an inspiring future for electrical engineering bringup, debug, and test.
© 2025 Saleae, Inc.
