Choose your Logic MSO
Choose your Logic MSO
Choose your Logic MSO

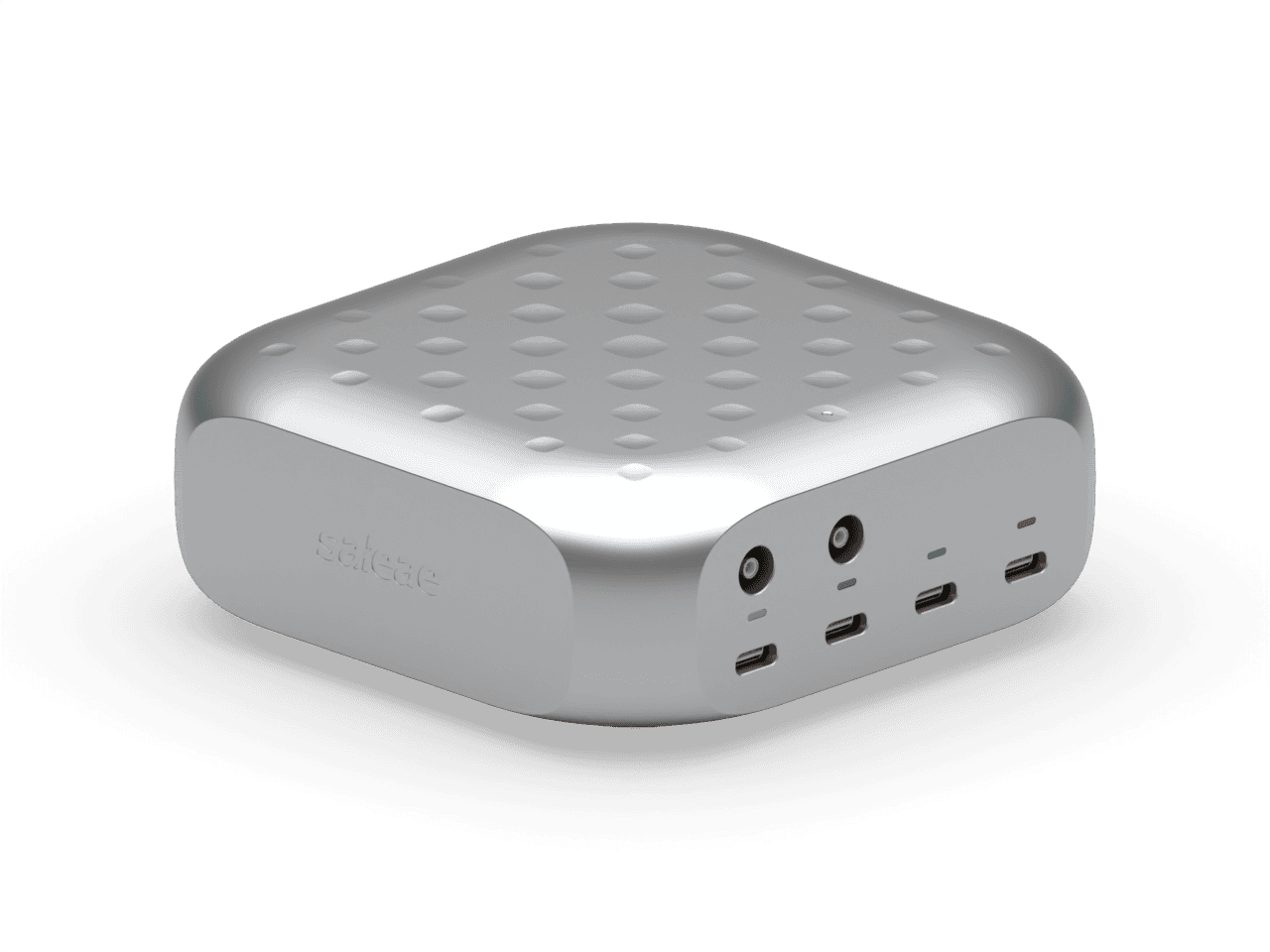

2 Ch
100 MHz 1GS/s
$999
9-bit (12-bit optional)
100M sample depth (1B optional)
8 Ch Logic Analyzer 1 GS/s (expand to 20 channels, anytime)
First year calibration included (calibrate at any major lab)
3 Year Unlimited Warranty
180-day returns, no-questions

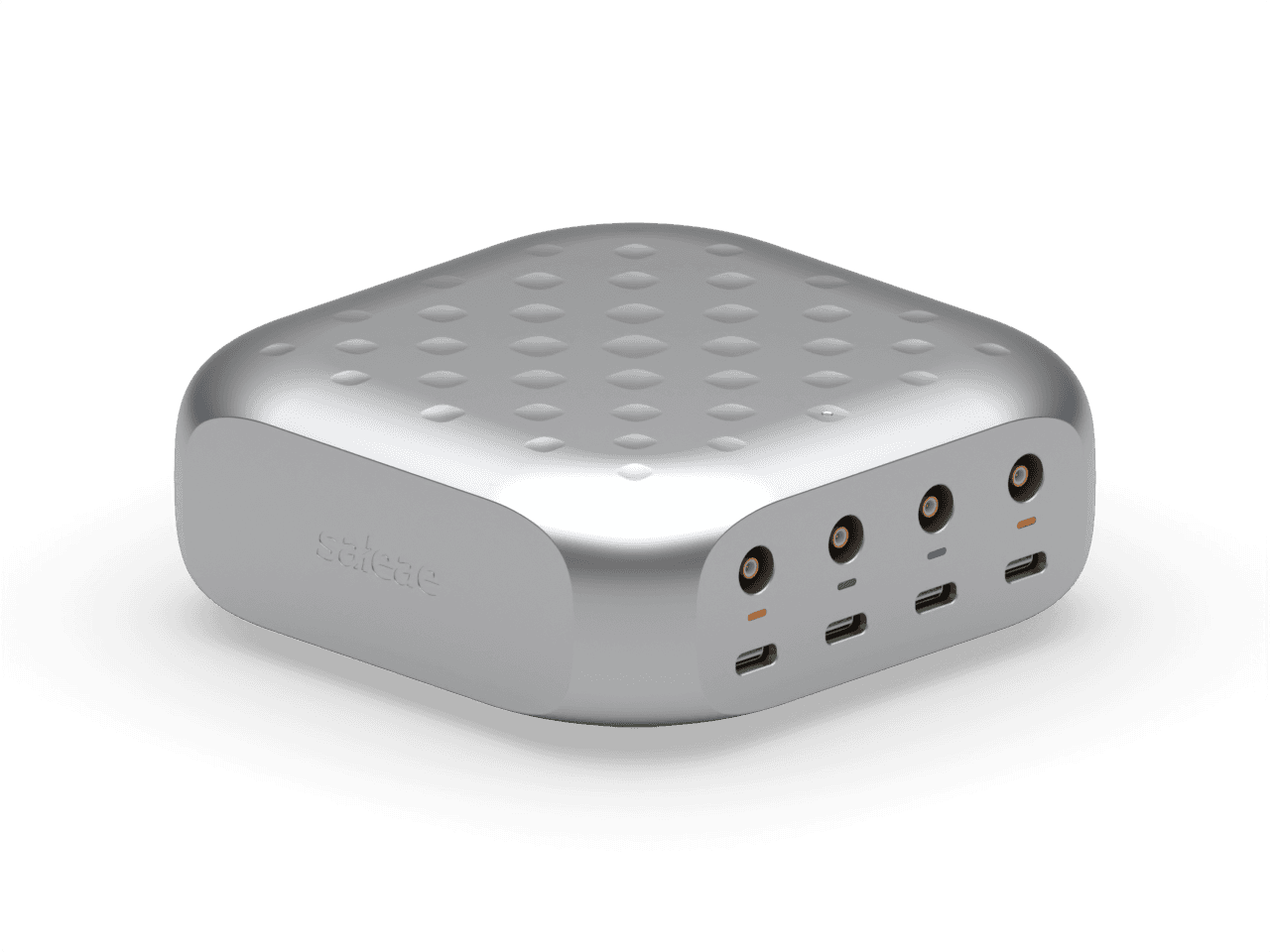

4 Ch
100 MHz 1GS/s
$1499
9-bit (12-bit optional)
100M sample depth (1B optional)
8 Ch Logic Analyzer 1 GS/s (expand to 20 channels, anytime)
First year calibration included (calibrate at any major lab)
3 Year Unlimited Warranty
180-day returns, no-questions
4 Ch
200 MHz 1.6GS/s
$1999
9-bit (12-bit optional)
100M sample depth (1B optional)
8 Ch Logic Analyzer 1 GS/s (expand to 20 channels, anytime)
First year calibration included (calibrate at any major lab)
3 Year Unlimited Warranty
180-day returns, no-questions
2 Ch
100 MHz 1GS/s
$999
9-bit (12-bit optional)
100M sample depth (1B optional)
8 Ch Logic Analyzer 1 GS/s (expand to 20 channels, anytime)
First year calibration included (calibrate at any major lab)
3 Year Unlimited Warranty
180-day returns, no-questions
4 Ch
100 MHz 1GS/s
$1499
9-bit (12-bit optional)
100M sample depth (1B optional)
8 Ch Logic Analyzer 1 GS/s (expand to 20 channels, anytime)
First year calibration included (calibrate at any major lab)
3 Year Unlimited Warranty
180-day returns, no-questions
4 Ch
200 MHz 1.6GS/s
$1999
9-bit (12-bit optional)
100M sample depth (1B optional)
8 Ch Logic Analyzer 1 GS/s (expand to 20 channels, anytime)
First year calibration included (calibrate at any major lab)
3 Year Unlimited Warranty
180-day returns, no-questions
2 Ch
100 MHz 1GS/s
$999
9-bit (12-bit optional)
100M sample depth (1B optional)
8 Ch Logic Analyzer 1 GS/s (expand to 20 channels, anytime)
First year calibration included (calibrate at any major lab)
3 Year Unlimited Warranty
180-day returns, no-questions
4 Ch
100 MHz 1GS/s
$1499
9-bit (12-bit optional)
100M sample depth (1B optional)
8 Ch Logic Analyzer 1 GS/s (expand to 20 channels, anytime)
First year calibration included (calibrate at any major lab)
3 Year Unlimited Warranty
180-day returns, no-questions
4 Ch
200 MHz 1.6GS/s
$1999
9-bit (12-bit optional)
100M sample depth (1B optional)
8 Ch Logic Analyzer 1 GS/s (expand to 20 channels, anytime)
First year calibration included (calibrate at any major lab)
3 Year Unlimited Warranty
180-day returns, no-questions
All the Specs.
General Specs
Standard
9-bit • 100 Ms
Pro
+$500
12-bit • 1000 Ms
Standard
9-bit • 100 Ms
Pro
+$750
12-bit • 1000 Ms
Standard
9-bit • 100 Ms
Pro
+$1000
12-bit • 1000 Ms
Oscilloscope Channels
2
4
4
Oscilloscope Bandwidth
100
MHz
100
MHz
200
MHz
Oscilloscope Sampling Rate
1.0
GS/s
1.0
GS/s
1.6
GS/s
Oscilloscope Resolution
9
bit
12
bit
9
bit
12
bit
9
bit
12
bit
Oscilloscope Sample Depth
100M
Samples
1B
Samples
100M
Samples
1B
Samples
100M
Samples
1B
Samples
Digital Channels
8
Expandable to 20
8
Expandable to 20
8
Expandable to 20
Digital Sampling Rate
1.0
GS/s
1.0
GS/s
1.2
GS/s
Digital Sampling Depth
Billions of transitions
Billions of transitions
Billions of transitions
Digital Transition Rate
300M
Transitions/s
300M
Transitions/s
300M
Transitions/s
Vertical (Amplitude)
All Devices
Input Impedance
1 MΩ || 16 pF nominal
Full Scale Range
10 mVpp to 60 Vpp
DC Gain Accuracy
±2 % of full scale range
DC Offset Accuracy
±1% of full scale range ± 2mV
DC Accuracy
DC gain accuracy ± DC offset accuracy
Gain Stage
0 dB to 38 dB in 2 dB steps
DC Offset Stage
±2.0V in 75uV steps
Attenuation Stages
1x (0 dB), 10x (10 dB), 100x (20 dB)
Input Coupling
AC/DC Selectable
AC Cutoff Frequency
7 Hz nominal
Bandwidth Limiting
20 MHz selectable (nominal)
Channel-to-Channel Isolation
≥ 50 dB
Maximum Input Voltage
±30 V Derate at 20dB per decade after 20 MHz
Box Contents
All Devices
Analog Probes
2 Probes (Fixed 10:1) with Accessories
4 Probes (Fixed 10:1) with Accessories
Accessories Per Analog Probe
1 x Grabber Hook, 1 x Alligator Clip Ground, 1 x Spring Ground, 1 x Ground Pin Receptacle, 1 x Test Clip
Probe Compensation Tools
1 x Pulse Generator, 1 x Ceramic Screw Driver
3rd Party Probe Connectivity
2 x BNC to SMB Adapters
4 x BNC to SMB Adapters
Digital Probes
2 with Accessories (add up to 3 more at any time)
Accessories Per Digital Probe
5-wire Harness, 5 × Test Clips, 5 × Pin-Pin Adapters, 2 × Pin-Probe Adapters
Data Connectivity
1.8m USB-A to USB-C Cable, USB-A to USB-C Adapter
Power Connectivity
3.0m USB-C to USB-C Cable, 30W Regional USB-C Power Adapter
Carrying Case
1 Case (with room for all included accessories and additional digital probes)
